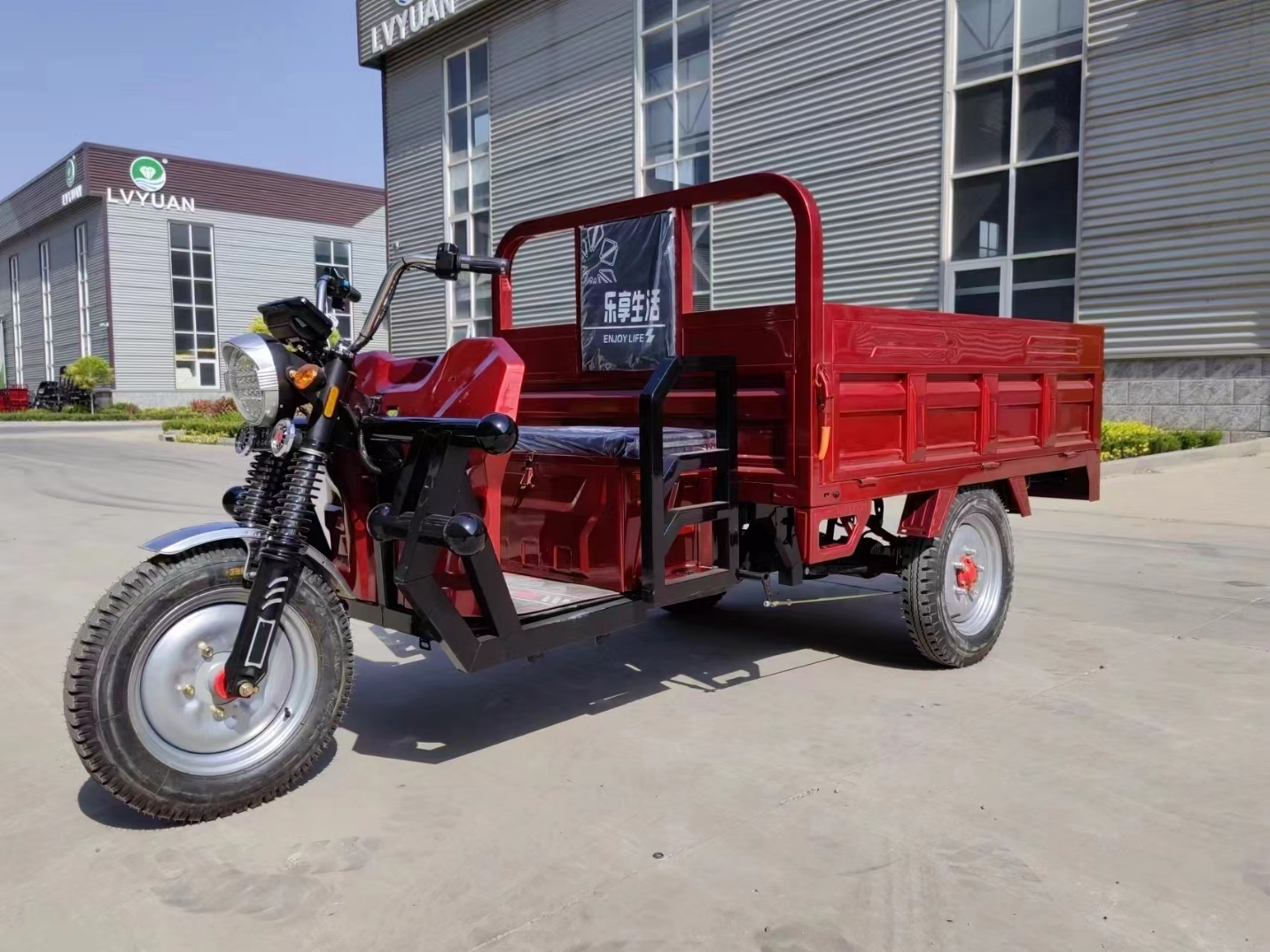

The electric cargo tricycle – where innovation meets functionality. Revolutionize your cargo hauling experience with this state-of-the-art vehicle. Its durable construction and high-capacity battery ensure long-lasting performance and reliability. Navigate through city streets or rural roads with ease, thanks to its agile handling. The electric cargo tricycle is not just a vehicle; it’s a solution to your transportation challenges. Discover a new way to move goods and make your business operations more sustainable.
| Particulars | Description |
| Model | |
| Brand Name | LB-180 |
| Total Vehicle Dimension (LxWxH)- mm | 3300x1380x1440 |
| Cargo Size (LxWxH)-mm | 1800*1300*430 |
| Wheelbase and Track-mm | 2215 and 1140 |
| Ground Clearance | ≥15cm |
| Cargo and Chassis type | Heavy Duty |
| Load Capacity-kg | 900kg |
| Drive Motor rating Power-W | 1200w |
| Climbing slope | 30° |
| Drive Motor Brand name | 鸿利达 |
| Position of the Motor | Differential Motor |
| Controller – Tubes | 18 |
| Controller Brand Name | 欧比特/鸿利达 |
| Battery Capacity -Voltage & Amp | 60V32Amp |
| Type of Battery- | Lead Acid battery |
| Battery weight- Kg | |
| Number of Cell | |
| Charger – Voltage/Amh | |
| Charging Times- hour | 6-7hr |
| Maximum Speed-km/hr | 50km/hr |
| Range Per Charge-km | 120km |
| Front Tire Size | 400-12 |
| Rear Tire Size | 450-12 |
| Tire Brand Name | 华隆 |
| Brake – Front and Rear | Drum Brake- by hand (Disc Brake -Optional) |
| Rear Brake | Drum Brake- by foot/lag |
| Parking Brake | Manual- by Hand |
| Turning Radius (With & Without Brake)-M | 4.8m |
| Rear Suspension | Leaf Sparing |
| Number of Spring | Single steel plate（5pcs steel plate) |
| Front Suspension- | 370 outer spring shock absorption |
| Rear Axle | Shift rear axle |
| Differential gear | 18 teeth |
| Gear | 3 speed (25km,35km,50km) |
| Starting Mood | Remote control + key start |
| Display- Mater | Digital |
| Light | Head Light, Side Light, Parking Light, Forg Lamp, Emergency Light |
| Mirror | LH & RH |
| Audio Player | Built in |
| Sun Roof with Wiper Motor | Optional |
| Color | Blue |
| Standard Tool & Accessories Set | Combination Set, Screw Driver, 1ton Hydraulic Jack, Electrical Connecting Joint, Fuse and etc. |
| Commercial FOB Offer- USD | |||
| Complete Vehicle- with Chargers | 560 | ||
| Battery 60V45Amp | 130 | ||
| 20HQ Container Capacity- SKD | 24 | ||
| 40HQ Container Capacity-SKD | 48 | ||
| Particulars | Description | ||
| Model | |||
| Brand Name | LB-160 | ||
| Total Vehicle Dimension (LxWxH)- mm | 3050x1180x1440 | ||
| Cargo Size (LxWxH)-mm | 1600*1100*390 | ||
| Wheelbase and Track-mm | 2015 and 940 | ||
| Ground Clearance | ≥15cm | ||
| Cargo and Chassis type | Heavy Duty | ||
| Load Capacity-kg | 700kg | ||
| Drive Motor rating Power-W | 1000w | ||
| Climbing slope | 30° | ||
| Drive Motor Brand name | 鸿利达 | ||
| Position of the Motor | differential motor | ||
| Controller – Tubes | 18 | ||
| Controller Brand Name | 欧比特/鸿利达 | ||
| Battery Capacity -Voltage & Amp | 60V32Amp | ||
| Type of Battery- | Lead Acid battery | ||
| Battery weight- Kg | |||
| Number of Cell | |||
| Charger – Voltage/Amh | |||
| Charging Times- hour | 5-6 hr | ||
| Maximum Speed-km/hr | 45km/hr | ||
| Range Per Charge-km | 120km | ||
| Front Tire Size | 375-12 | ||
| Rear Tire Size | 400-12 | ||
| Tire Brand Name | 华隆 | ||
| Brake – Front and Rear | Drum Brake- by hand (Disc Brake -Optional) | ||
| Rear Brake | Drum Brake- by foot/lag | ||
| Parking Brake | Manual- by Hand | ||
| Turning Radius (With & Without Brake)-M | 4.8m | ||
| Rear Suspension | Leaf Sparing | ||
| Number of Spring | Single steel plate（5pcs steel plate) | ||
| Front Suspension- | 370 outer spring shock absorption | ||
| Rear Axle | Shift rear axle | ||
| Differential gear | 18 teeth | ||
| Gear | 3 speed (25km,35km,50km) | ||
| Starting Mood | Remote control + key start | ||
| Display- Mater | Digital | ||
| Light | Head Light, Side Light, Parking Light, Forg Lamp, Emergency Light | ||
| Mirror | LH & RH | ||
| Audio Player | Built in | ||
| Sun Roof with Wiper Motor | Optional | ||
| Color | Blue | ||
| Standard Tool & Accessories Set | Combination Set, Screw Driver, 1ton Hydraulic Jack, Electrical Connecting Joint, Fuse and etc. | ||
| Commercial FOB Offer- USD | |
| Complete Vehicle- with Chargers | 480 |
| Battery 60V32Amp | 130 |
| 20HQ Container Capacity- SKD | 28 |
| 40HQ Container Capacity-SKD | 55 |
